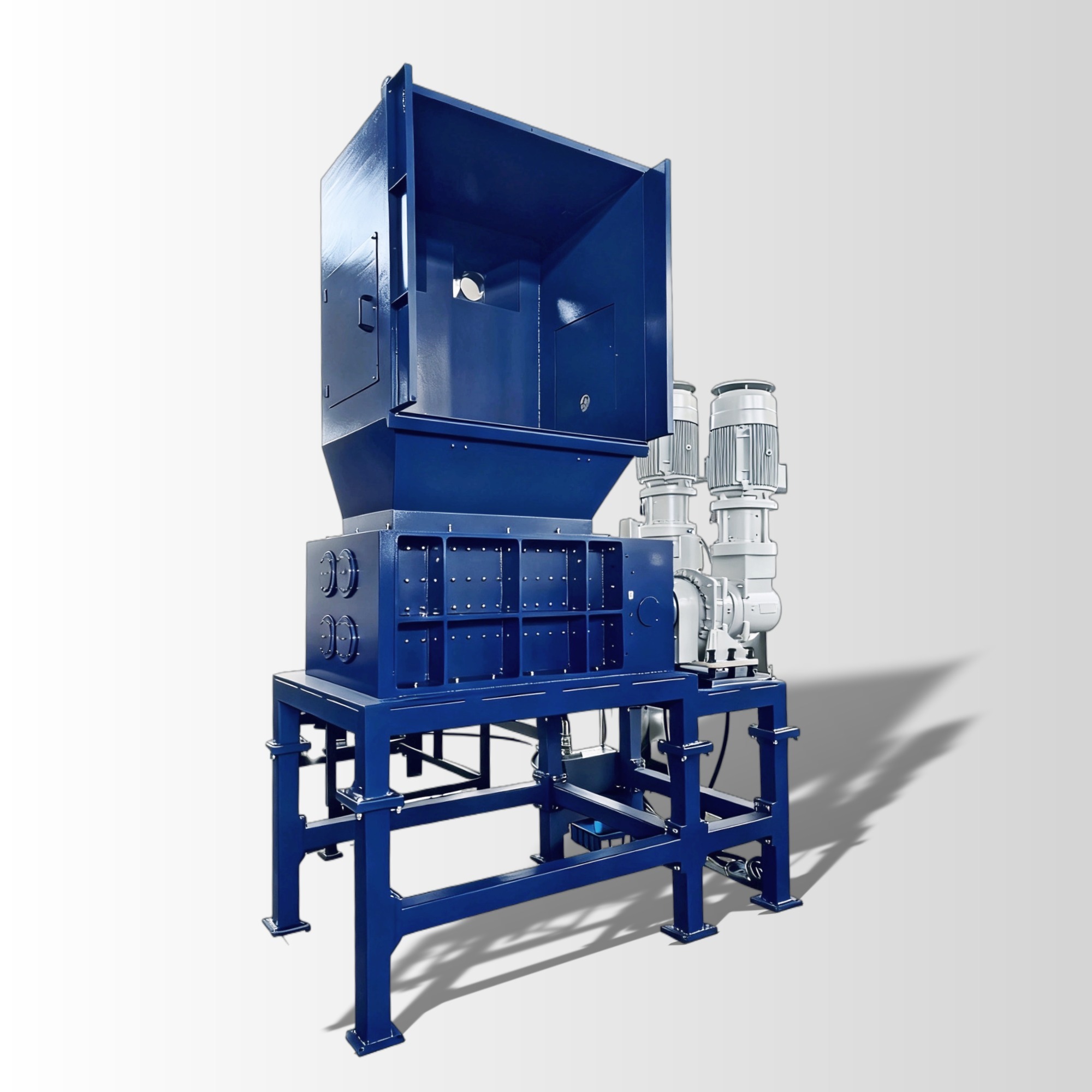

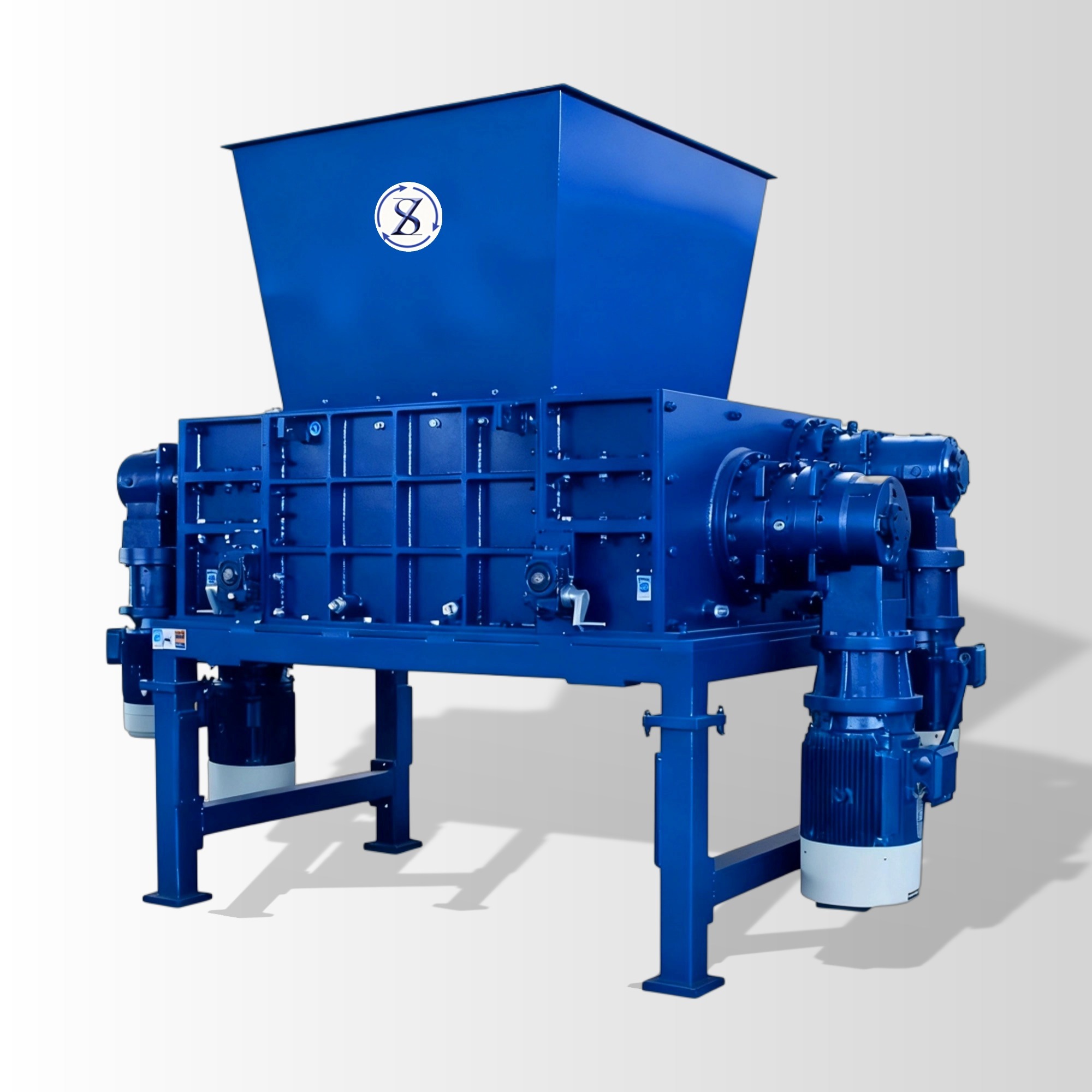

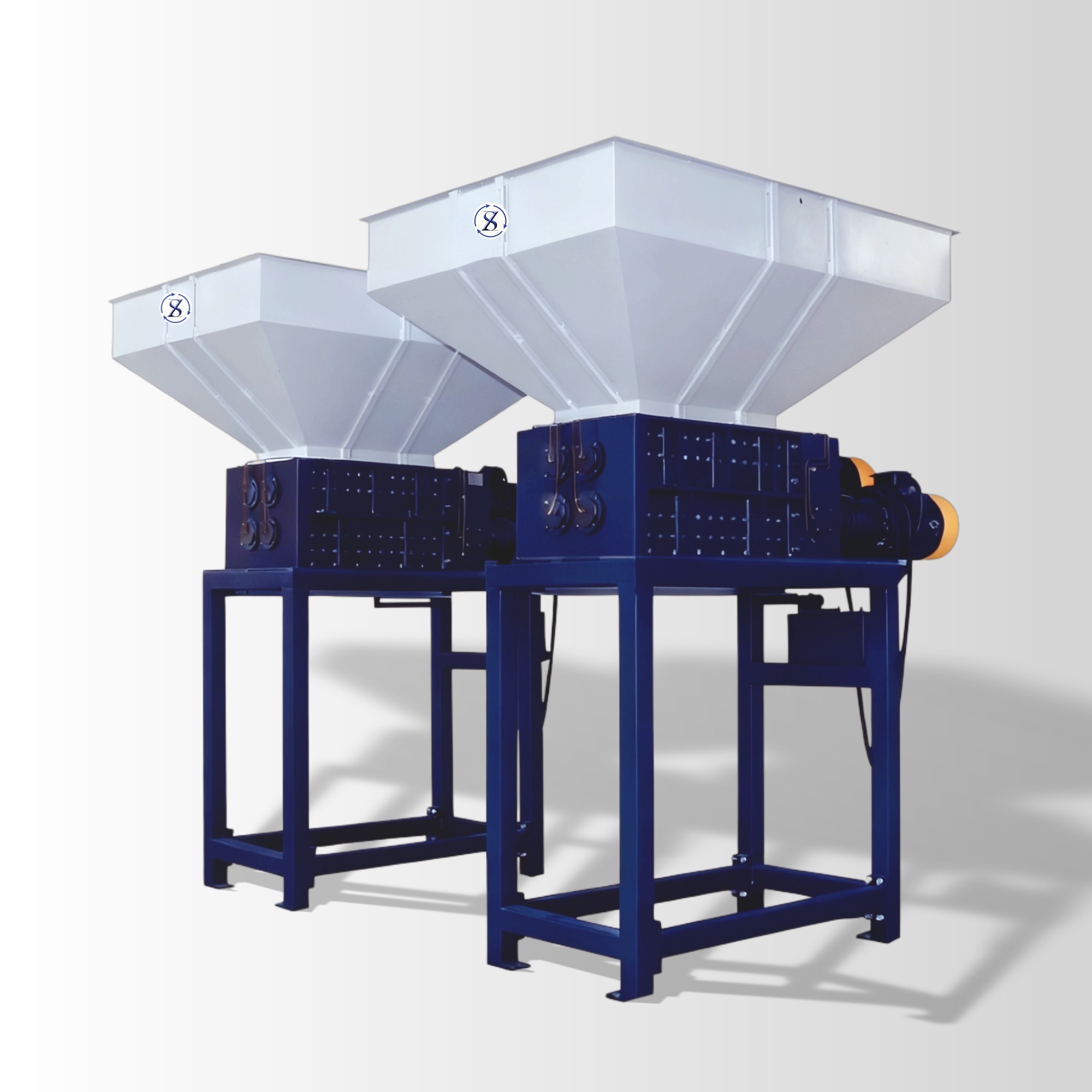

Four Shaft Shredder

Name: Four Shaft Shredder
Brand: ZS Shredder and Cutter Service Inc.
Availability: InStock
Rating: 5 (1 reviews)

The core function of the FS Series Four Shaft Shredder is precision crushing and volume reduction of high-hardness, high-toughness, and large complex materials. It can handle thick-walled plastics, tires, bulky furniture, electronic waste, waste steel slag, and more, shredding materials into uniform small pieces to facilitate in-depth recycling and environmental-friendly disposal.

GET A QUOTE

PRODUCT VIDEO

ZS-SHREDDER

The four shaft shredder excels at precision crushing and volume reduction of high-hardness, high-toughness, and large, complex materials.

Four-shaft collaborative shearing is efficient and uniform, enabling precise particle size control; it is safe and durable, adapting to diverse recycling and processing needs.

Description

The four shaft shredder’s distinctive features include: a four shaft synergistic shearing design, which offers a larger shearing surface and more uniform crushing, making it capable of handling mixed materials and tangled waste; multi-shaft linkage boosts torque reserve, ensuring stable operation with shredding efficiency superior to dual-shaft models; blades feature a stepped layout for even wear, extending service life by over 30%; 0-50mm discharge particle size can be controlled via multi-stage gap adjustment, adapting to diverse processing needs; it is equipped with intelligent overload protection and automatic reversal functions for safe operation; the machine body is welded with high-strength steel, suitable for continuous high-intensity operation applications.

Model	Motor power	Main blade thickness	Main blade rotation diameter	Cutting chamber dimensions(mm)	Overall dimensions(LxWxH)(mm)	Weight
FS4030	1.5KW	18.5mm	φ180mm	400x300mm	850x600x1650mm	1600kg
FS6650	7.5KW	18.5mm	φ230mm	660x500mm	1600x800x1940mm	1000kg
FS8080	2x11KW	18.5mm	φ245mm	800x800mm	2360x1200x2065mm	2000kg
FS9080	2x22KW	25mm	φ290mm	900x800mm	2690x1450x2450mm	3500kg
FS100100	2x30KW	40mm	φ320mm	1000x1000mm	2820x1800x2500mm	5500kg
FS100120	2x30KW	40mm	φ320mm	1000x1200mm	3020x1800x2500mm	6000kg
FS130120	2x15+2x30KW	50mm	φ430mm	1300x1200mm	3650x2000x3100mm	12500kg
FS130140	2x15+2x37KW	50mm	φ430mm	1300x1400mm	3850x2000x3100mm	13500kg
FS160140	2x30+2x45KW	50mm	φ534mm	1600x1400mm	4160x2200x3630mm	17000kg
FS160160	2x30+2x45KW			1600x1600mm	4360x2200x3630mm	18000kg
FS160200	2x30+2x55KW			1600x2000mm	4560x2200x3630mm	19000kg

Four Shaft Shredder

PRODUCT VIDEO

The four shaft shredder excels at precision crushing and volume reduction of high-hardness, high-toughness, and large, complex materials.
