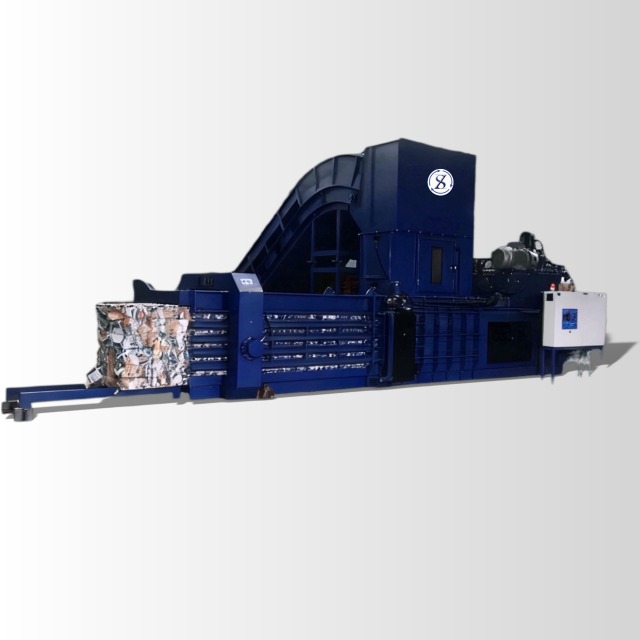

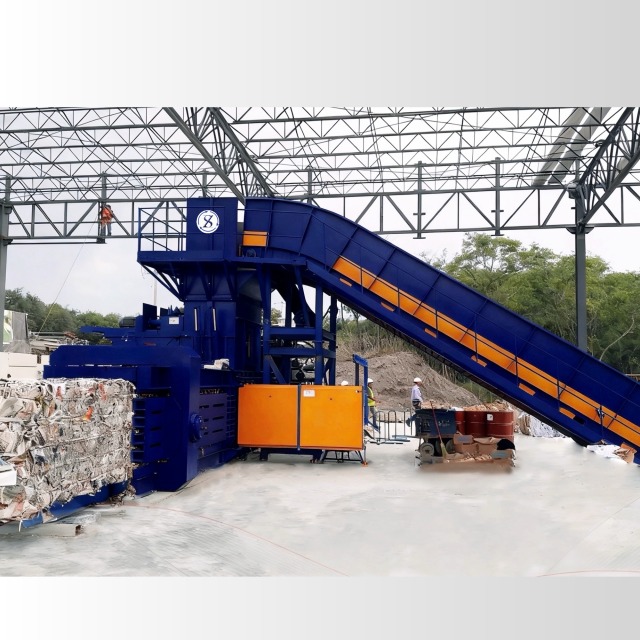

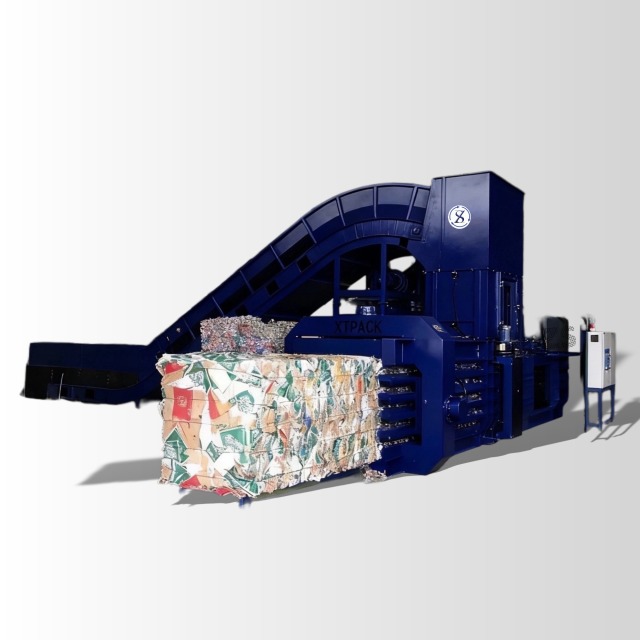

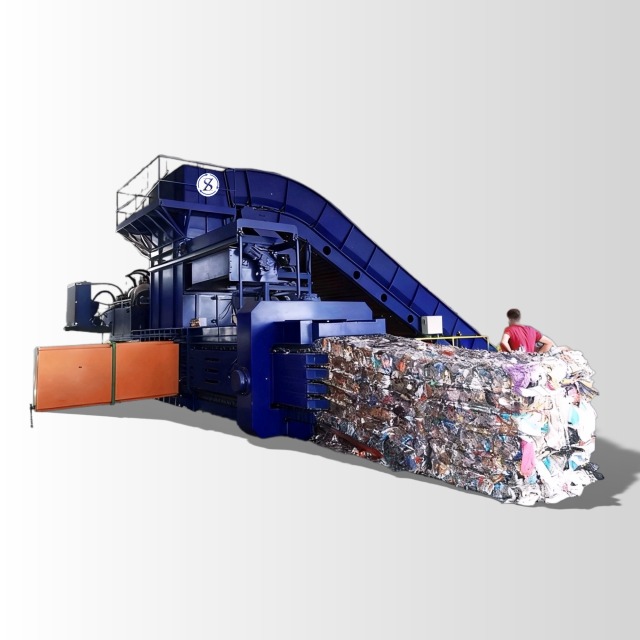

Large-Sized Full Automatic Balers

Name: Large-Sized Full Automatic Balers
Brand: ZS Shredder and Cutter Service Inc.
Availability: InStock
Rating: 5 (1 reviews)

Specialized in recycling and compressing loose materials such as waste paper, cardboards, cartons, waste books, magazines, plastic film, natural fiber, straw, etc., with high productivity. The adjustable bale length and bale count accumulation function ensure convenient operation. A scatterer is optional for scattering newspapers, books, and magazines during conveyance into the chamber.

GET A QUOTE

ZS-Horizontal Balers

Large-Sized Full Automatic Balers

Specialized in recycling and compressing loose materials such as waste paper, cardboard, carton trims, waste books, magazines, plastic films, natural fibers, and straw, etc.

Description

Photoelectric switch activates the baler when the feed box is full.
Unique double-cutting blade design boosts cutting efficiency and extends blade service life.
Special anti-slip design ensures neater, more uniform bales.
Exclusive trunnion-mounted frame and ball-joint main cylinder design eliminates rod torque, extending seal service life.
Equipped with a rapid automatic strapping system, facilitating easy cleaning and maintenance.
Adopting differential technology for the hydraulic system shortens cycle time, improving work efficiency and saving energy.
Automatic tension system delivers "brick-like" compact bales for all loose materials.
Adjustable bale length and bale count accumulation function enhance operational convenience.
Automatically detects and displays equipment faults, increasing inspection efficiency.
International standard electrical circuit layout, graphic operation manual, and detailed component labeling ensure intuitive operation and simplified maintenance.
Press heads undergo specialized planomilling, guaranteeing precise ram operation.
Features high-quality hydraulic system from Taiwan for stable equipment performance.
Heavy-duty machine body requires only a flat surface for installation.

Model	TY-1000W11080-60	TY-1000W11080L-60	TY-1000W110110-60	TY-1000W110110L-60
Pressure	100tons	100tons	100tons	100tons
Main Motor Power	45kw	45kw	45kw	45kw
Cooling System	air cooler / water cooler	air cooler / water cooler	air cooler / water cooler	air cooler / water cooler
< Cycle Time (unload)	14s	16s	14s	16s
Oil Reservoir	1600L	1600L	1600L	1600L
Number of Belting	4lines	4lines	5lines	5lines
Wire Size	Ø3.0-3.2	Ø3.0-3.2	Ø3.0-3.2	Ø3.0-3.2
Feed Opening Size (L*W)	1600*1050mm	1800*1050mm	1600*1050mm	1800*1050mm
Chamber Size (LWH)	21001100800mm	24001100800mm	210011001100mm	240011001100mm
Bale Size (LWH, L is adjustable)	L1100800mm	L1100800mm	L11001100mm	L11001100mm
Bale Density （OCC）	450-550kgs/m3	450-550kgs/m3	450-550kgs/m3	450-550kgs/m3
Throughput (30-60kgs/m3)	5-9tons/h	5-10tons/h	6-11tons/h	6-12tons/h
Machine Weight	15tons	16tons	17tons	18tons
Machine Overall Dimension	850040004200mm	910040004200mm	870040004200mm	930040004200mm
Feeding Device	Conveyor	Conveyor	Conveyor	Conveyor
Conveyor
Feeding Width	1600mm	1800mm	1800mm	1600mm
Speed	12m/min	12m/min	12m/min	12m/min
Power	7.5KW	7.5KW	7.5KW	7.5KW
Weight	6tons	7tons	6tons	7tons
Overall Dimension	1100021005200mm	1100023005200mm	1100021005200mm	1100023005200mm
Scatter (Used for the machines that compress the newspaper)
