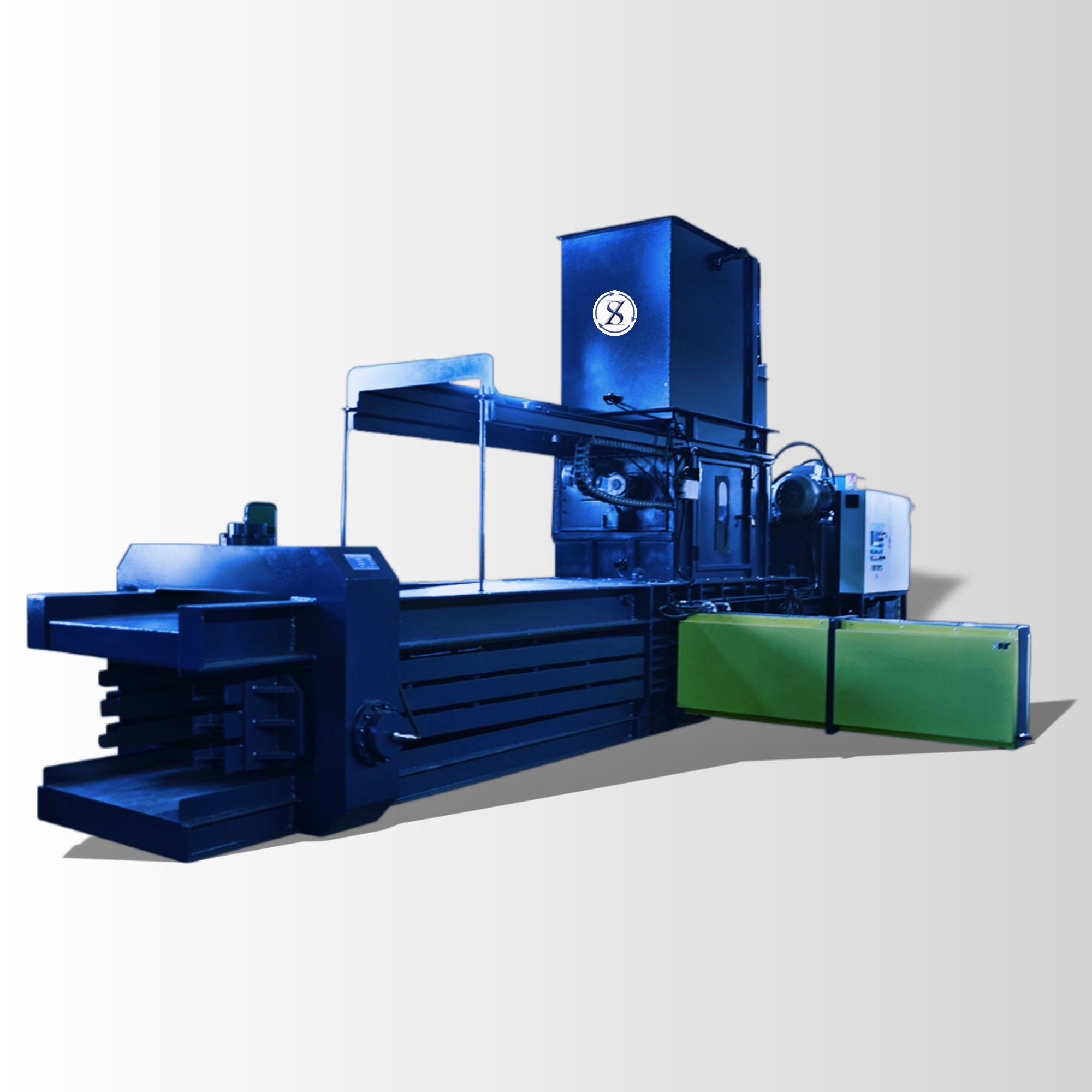

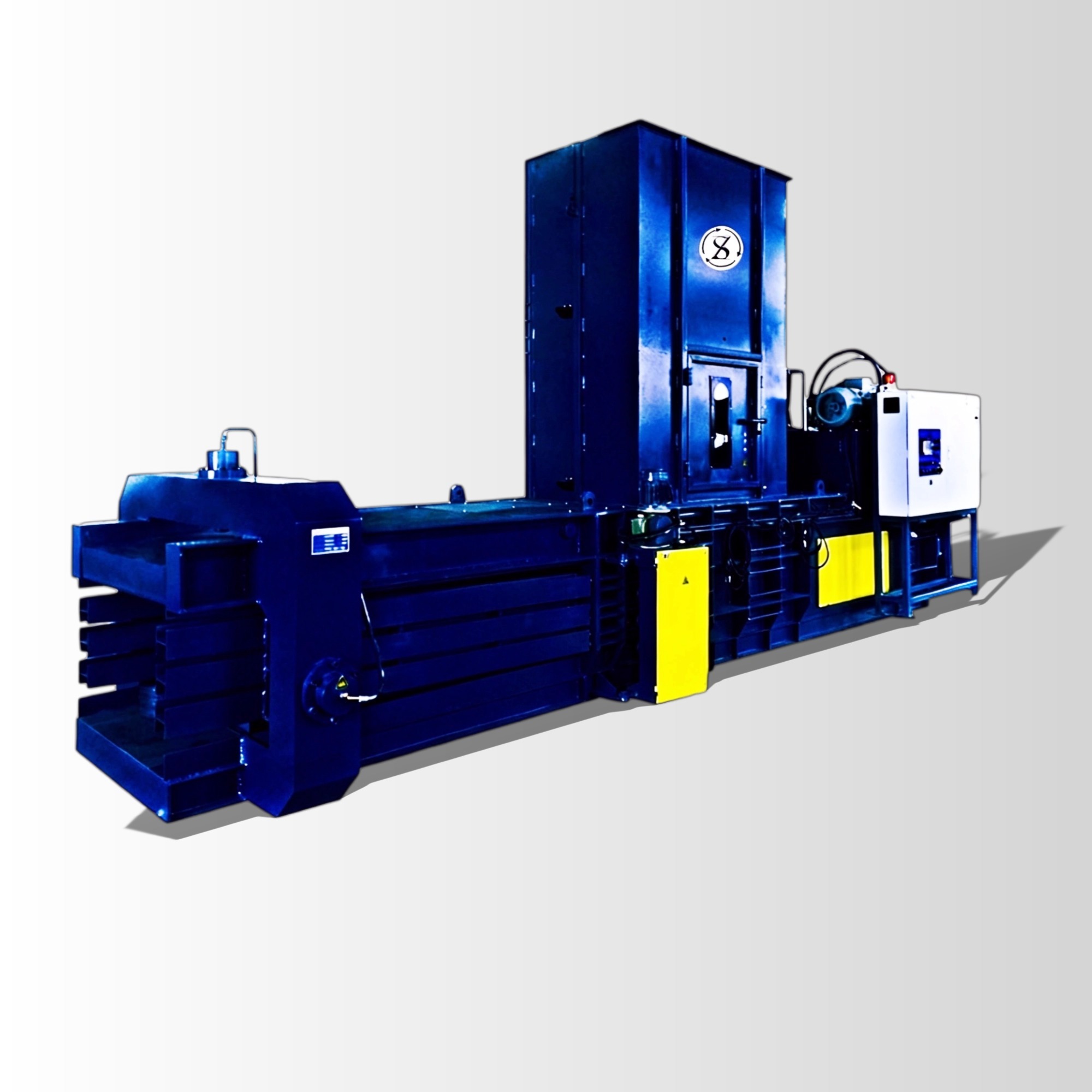

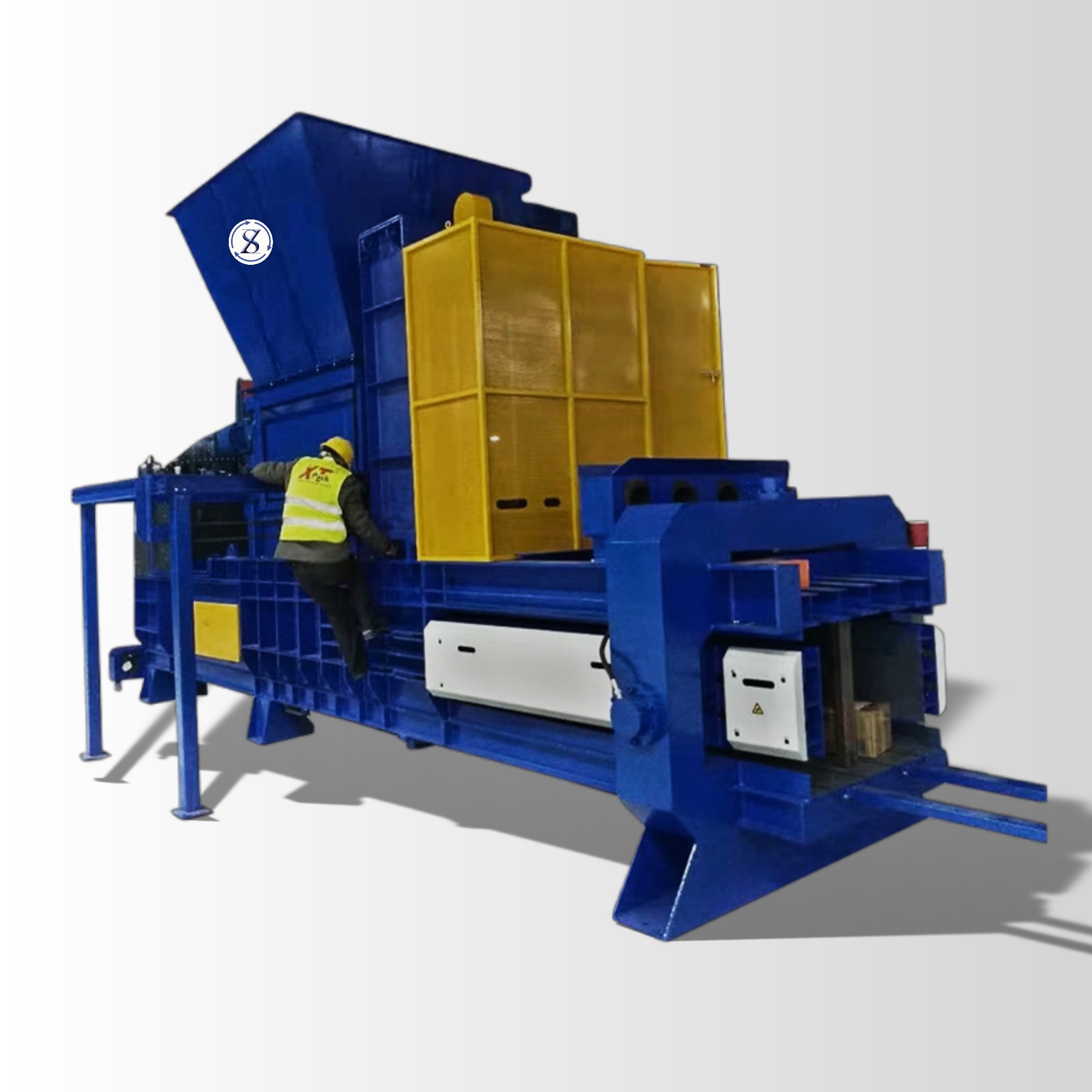

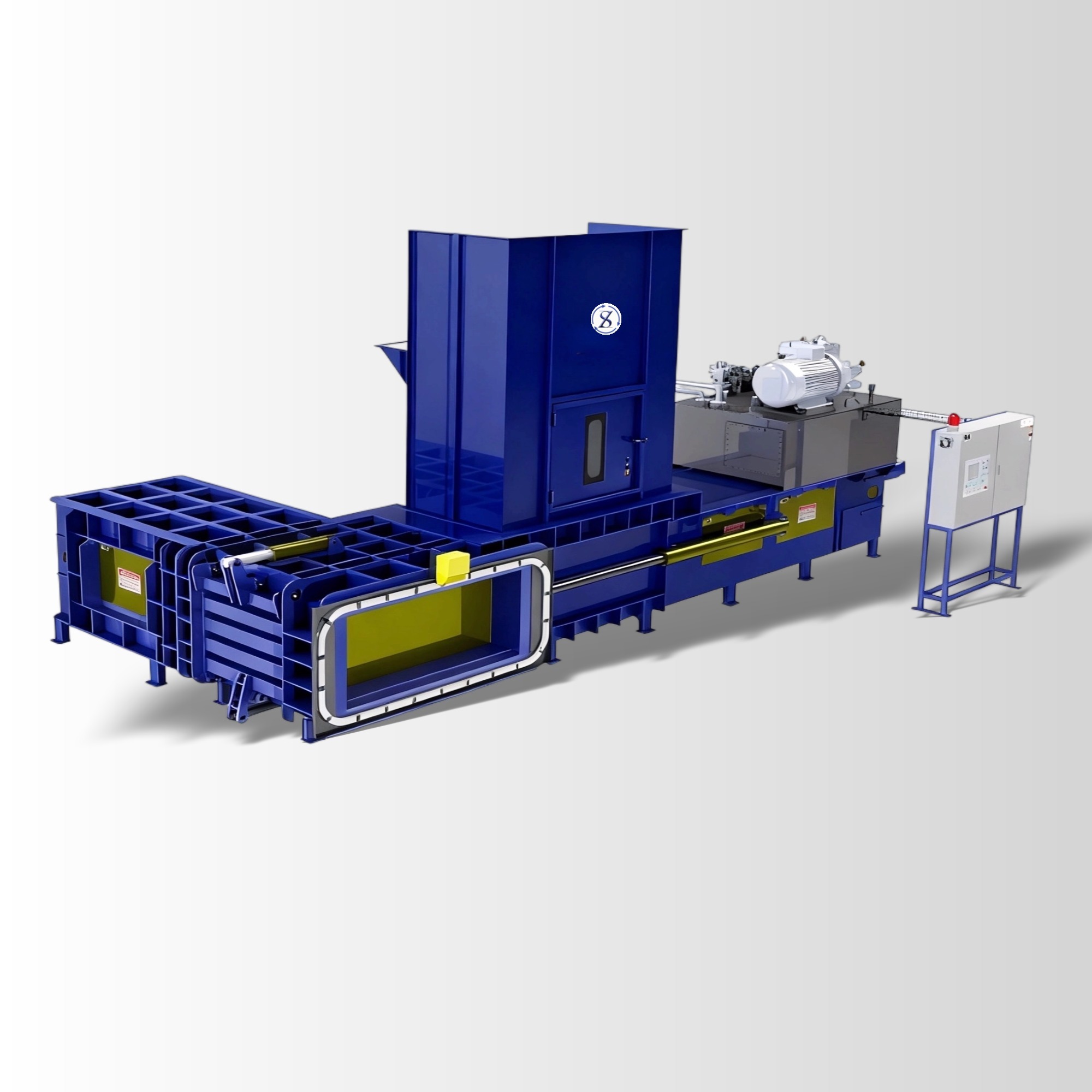

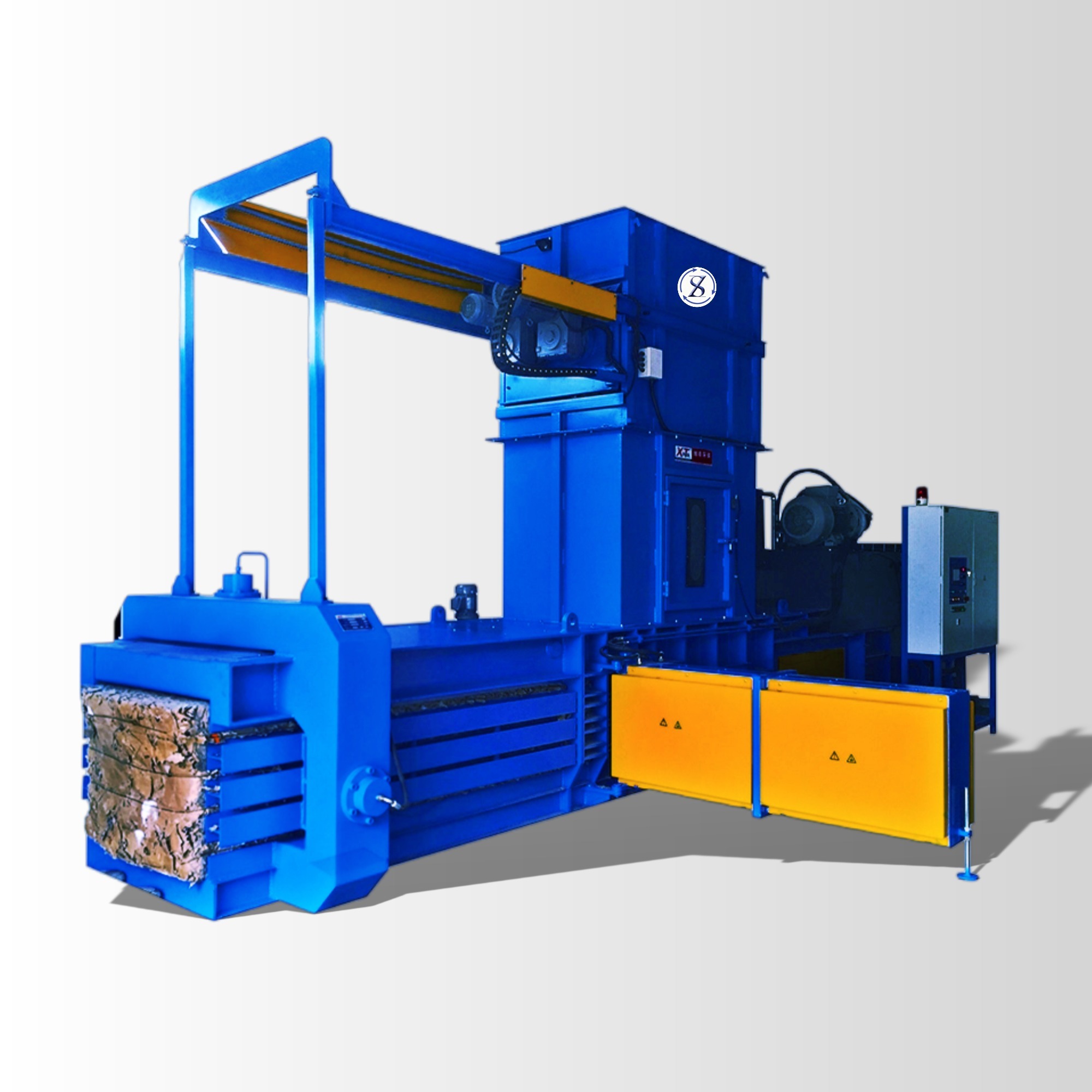

Medium-Sized Full Automatic Balers

Widely applicable for compressing waste cardboard, cartons, paper, plastic film, straw, etc., and are widely used in packaging and corrugation industries, beer breweries, recycling centers, as well as printing plants. A conveyor is optional for convenient feeding of waste into the chamber.
  • Medium-Sized Full Automatic Balers
  • Medium-Sized Full Automatic Balers
  • Medium-Sized Full Automatic Balers
  • Medium-Sized Full Automatic Balers
  • Medium-Sized Full Automatic Balers
ZS-Horizontal Balers

Medium-Sized Full Automatic Balers

Description

●  Photoelectric switch activates baler when charge box is full
●  Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
●  Particular anti-slide design of the machine makes nicer bales
●  Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
●  Equipped with rapid automatic tying system, easy for cleaning and maintaining
●  Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
●  Automatic tension system ensures “brick-like” bales on all loose materials
●  Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
●  Automatically detect and show the errors of the machine which improve the machine inspection efficiency
●  International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
●  The press heads are specially processed by planomiller, ensures the precise running of the ram
●  Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
●  The heavy duty machine body makes sure only flat ground is required by the installation


Model TY-600W11075-30 TY-800W11075-50
Pressure 60tons 80tons
Main Motor Power 22kw 37.5kw
Cooling System air cooler / water cooler air cooler / water cooler
Cycle Time (unload) 24s 16s
Oil Reservoir 1000L 1100L
Number of Belting 4lines 4lines
Wire Size Ø2.7-3.0 Ø2.7-3.0
Feed Opening Size (L*W) 1600*1050mm 1600*1050mm
Chamber Size (L*W*H) 2100*1100*750mm 2100*1100*750mm
Bale Size (L*W*H, L is adjustable) L*1100*750mm L*1100*750mm
Bale Density (OCC) 400-500kgs/m3 420-500kgs/m3
Throughput (30-60kgs/m3) 3-7tons/h 4-8tons/h
Machine Weight 13tons 14tons
Machine Overall Dimension 7950*3950*3500mm 8100*3900*3500mm
Feeding Device Conveyor Conveyor
Conveyor
Feeding Width 1600mm 1600mm
Speed 12m/min 12m/min
Power 4/5.5KW 4/5.5KW
Weight 5tons 5tons
Overall Dimension 9000*2100*4500mm 9000*2100*4500mm
