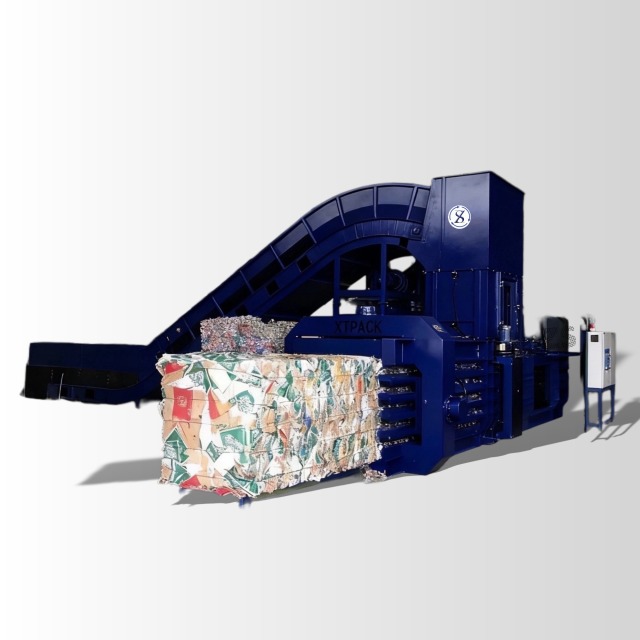

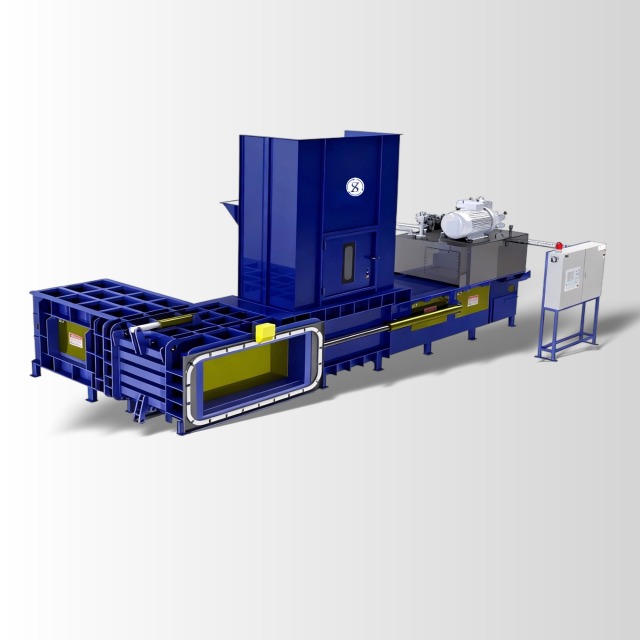

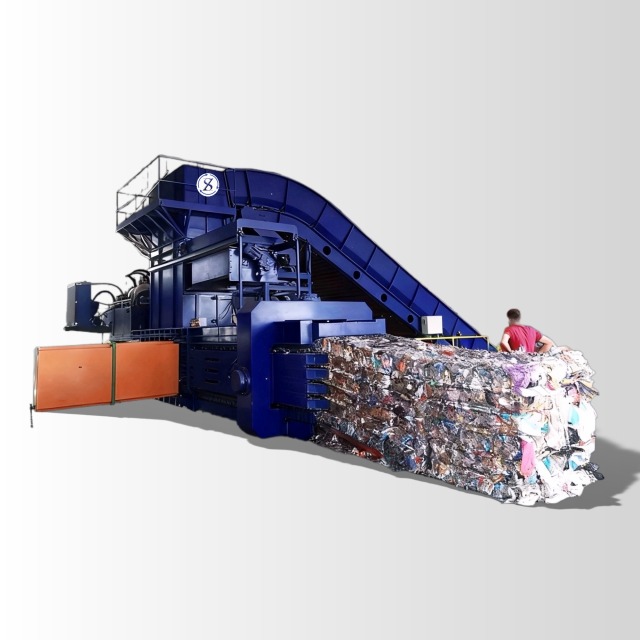

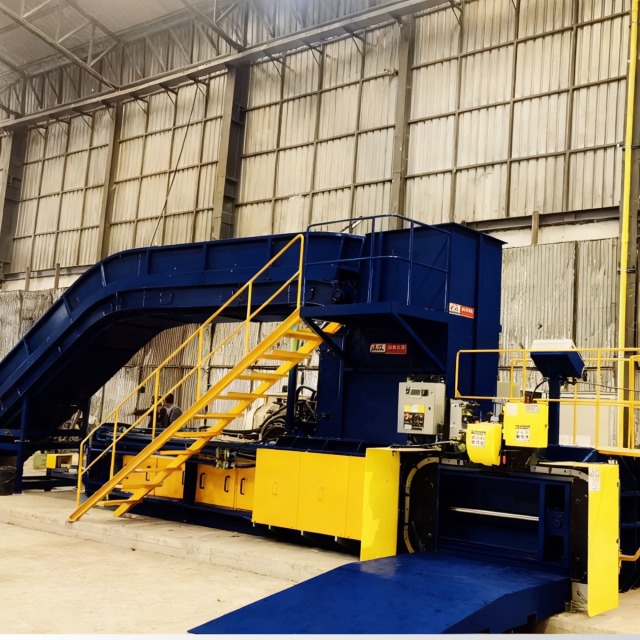

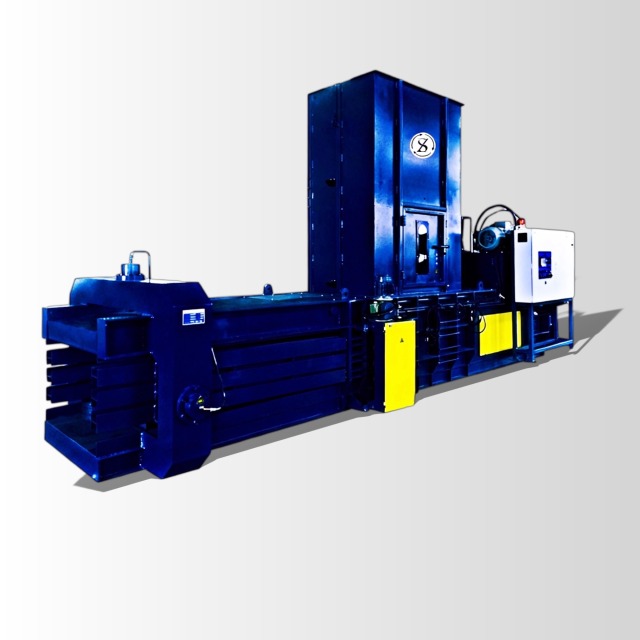

Large-Sized Full Automatic Two Ram Balers

The two-ram baler can not only achieve maximum bale weight, but also bale a wide range of materials including OCC, plastic films, HDPE, PET, aluminum cans, steel cans, various plastic bottles, plastic baskets, waste tyres, and waste household appliances (such as refrigerators, washing machines, microwave ovens, aluminum alloy frames, iron sheets, etc.).
GET A QUOTE
  • Large-Sized Full Automatic Two Ram Balers
  • Large-Sized Full Automatic Two Ram Balers
  • Large-Sized Full Automatic Two Ram Balers
  • Large-Sized Full Automatic Two Ram Balers
  • Large-Sized Full Automatic Two Ram Balers
Large-Sized Full Automatic Two Ram Balers
ZS-Horizontal Balers

Large-Sized Full Automatic Two Ram Balers

Description

  • Adopts imported ACCENT automatic strapping machine from the United States, featuring high efficiency and low failure rate;
  • All oil cylinder strokes are controlled by sensors with a precision of 0.1mm;
  • The bale width can be adjusted according to different materials, and the door opening mechanism adapts automatically to ensure maximum bale density;
  • Uses ultra-high strength shear blades, which are easy and quick to install and replace for convenient maintenance;
  • The entire inner cavity of the machine is made of Swedish HARDOX wear-resistant steel plate, ensuring long service life;
  • The main push device is specially designed to be quickly removed from the cavity for easy maintenance;
  • Automatic material volume sensing adjusts the feeding amount automatically during bale formation;
  • The number of strapping lanes and strapping distance can be adjusted as needed;
  • Corresponding programs can be selected for different materials, such as programs for plastic bottles/waste paper/film/waste metal, greatly improving compression efficiency and production capacity;
  • Compared with single-cavity balers, dual-ram balers handle materials more flexibly, and the fully enclosed, high-strength baler cavity can process a wider range of materials;
  • The machine adopts a high-strength structural design to reduce stress weak points, ensuring longer service life and higher reliability.



Model TR-1200W11075-75
Pressure 120T
Motor Power 55kw
Cooling System Air cooler/water cooler
Cycle Time 14 seconds
Oil Tank Volume 1900L
Number of Belting customized
Wire Size D3.0-3.4
Feed Opening Size(L*W) 2100*1076mm
Chamber Size(L*W*H) 4010*1100*750mm
Bale Size(L*W*H) 1500*1100*750mm
Bale Density(OCC) 450-550kg/m3
Throughput 13-17T/H
Machine Weight 21T
Machine Overall Dimension(L*W*H) 9080*4000*3530mm
Feeding Device Conveyor
