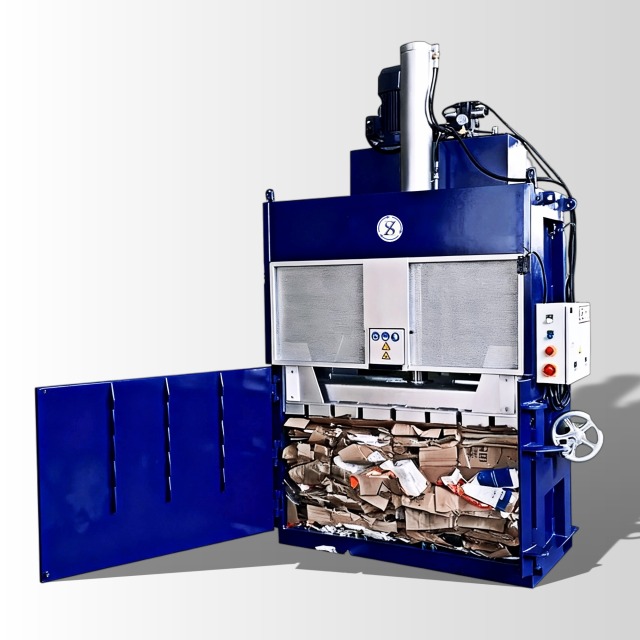

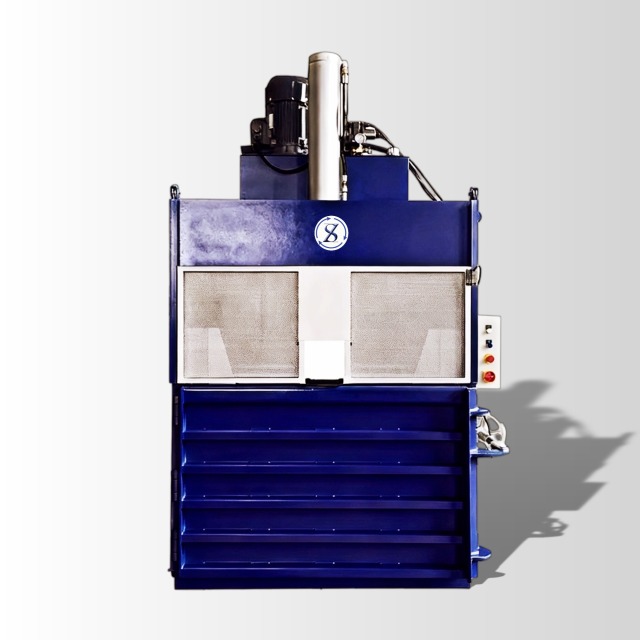

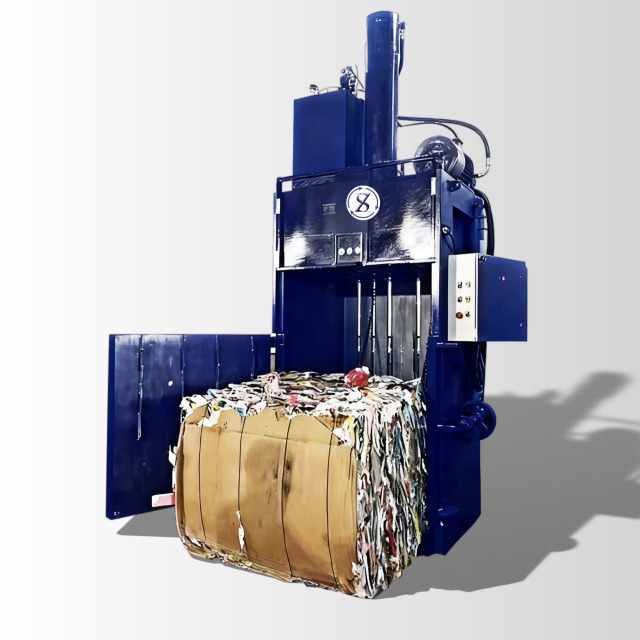

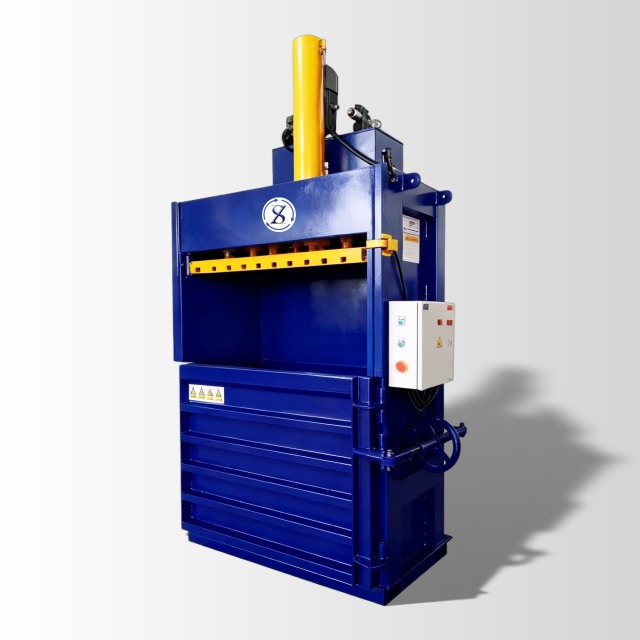

Paper/Carton/Soft Plastic Film Balers

Specially designed for recycling waste cardboard, cartons, newspapers, soft plastic films, etc., featuring a wide feed opening.
GET A QUOTE
  • Paper/Carton/Soft Plastic Film Balers
  • Paper/Carton/Soft Plastic Film Balers
  • Paper/Carton/Soft Plastic Film Balers
  • Paper/Carton/Soft Plastic Film Balers
Paper/Carton/Soft Plastic Film Balers
ZS-Vertical Balers

Paper/Carton/Soft Plastic Film Balers

Description

●　Automatic bale ejector for quickly and easily ejecting the bales from the machine
●　Cross-cylinder design reduces the height of the balers, conveniently for transportation, installation and maintenance
●　The ram will stop running downwards when the feeding gate is opened which ensures the safety of the operation
●　Equipped with independent emergency stop for safe operation
●　Two hands are required for pressing the buttons when eject the bales out from the machine, ensures the safety of the operator
●　Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
●　PLC control system ensures the uniform bale weight
●　Special ram guides design makes the platen not slope because of uneven materials feedings during compression
●　Equipped with NOK seals that from Japan means longer lifespan of the seals
●　Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
●　Equipped with cartridge valves that from USA, less space required for the installation
●　Low noise design, ensures the noise no more than 70db
Model TY-300LJ12080 TY-500LJ12080
Pressure 30tons 50tons
Feed opening size (L * H) 1050*550mm 1050*550mm
Baling Chamber Height 1600mm 1700mm
Bale Size(L*W*H,H is adjustable) 1200*800*(500-1000)mm 1200*800*(600-1100)mm
Bale Weight 200-400kgs 300-500kgs
Power 4kw 4/5.5kw
Machine Weight 2200kgs 2800kgs
Machine Overall Dimension 1800*1400*2300mm 1900*1500*2550mm
