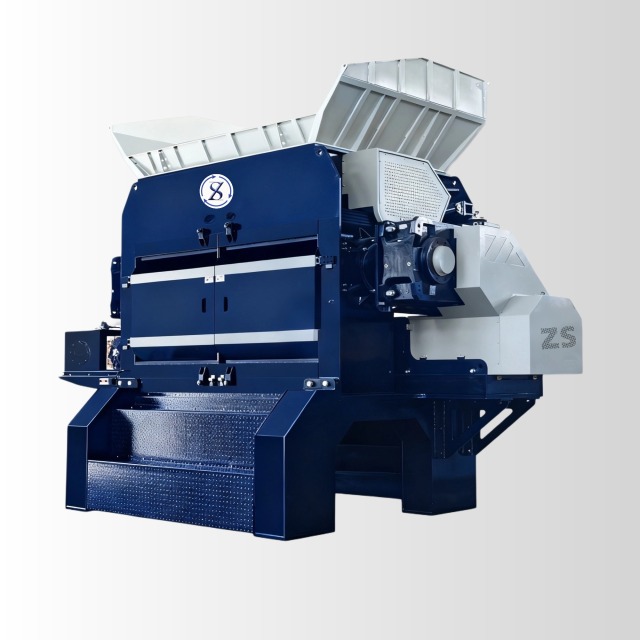

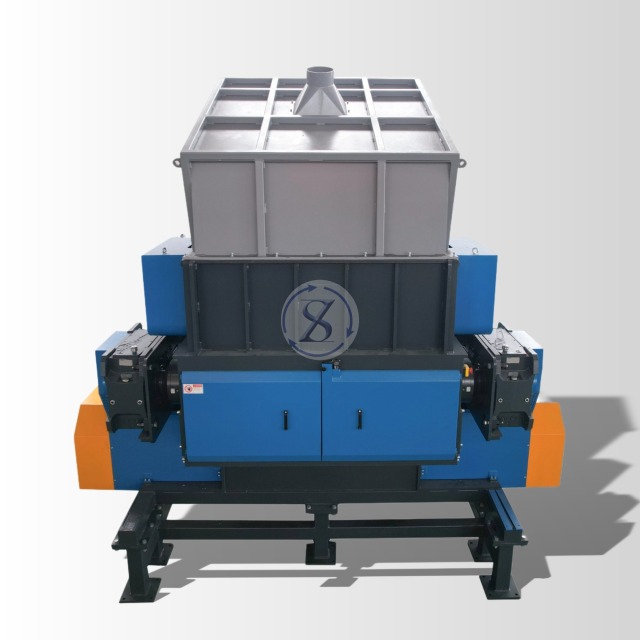

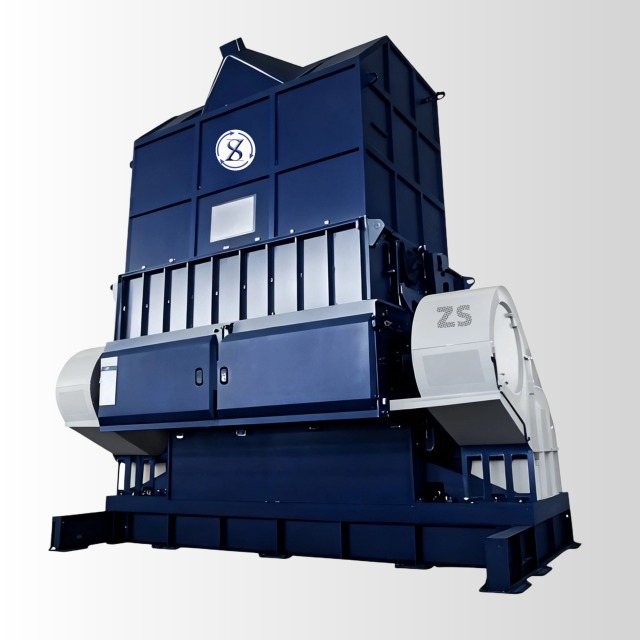

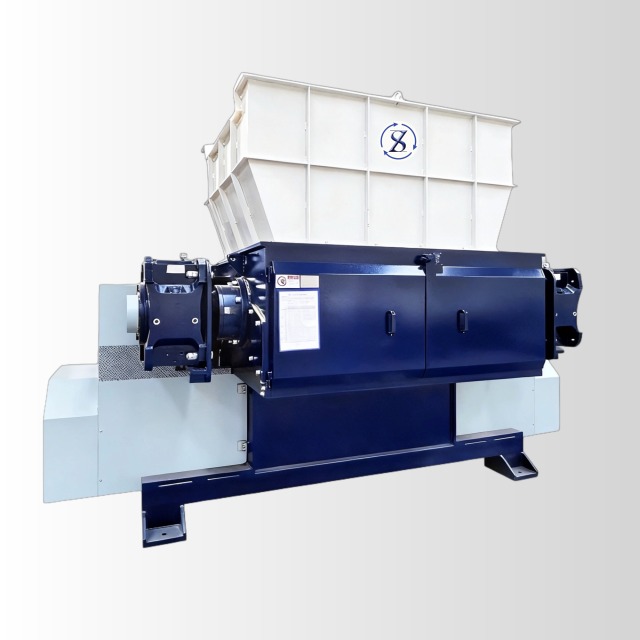

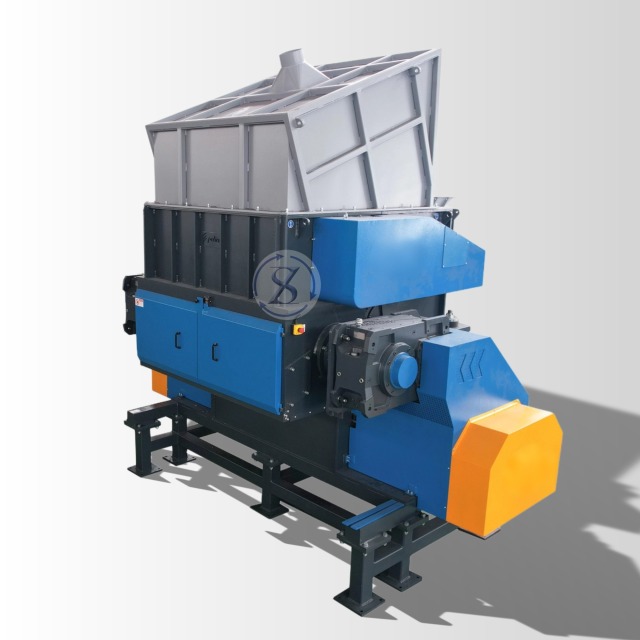

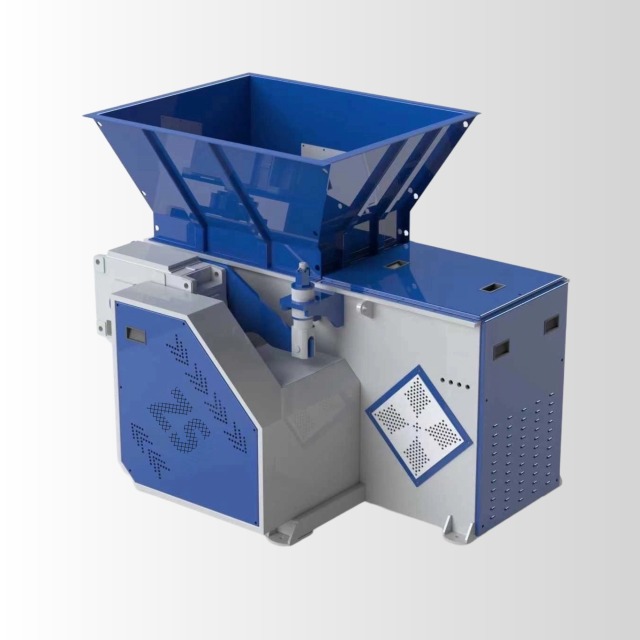

The SRB single-shaft shredder is perfectly suited for reducing the size of diverse materials, including plastic, film, glass fiber, household waste and beyond. Its unique layout of rotor blades delivers superior crushing efficiency along with steady and consistent output.
| Model |
SRB1400 |
SRB1600 |
SRB2100 |
| Main shaft speed(rpm) |
73 |
73 |
73 |
| Ram travel(mm) |
530 |
530 |
530 |
| Rotor diameter(mm) |
Φ480 |
Φ480 |
Φ480 |
| Number of rotor blades(pcs) |
80 |
94 |
122 |
| Number of fixed blades(pcs) |
10 |
12 |
16 |
| Discharge height(mm) |
792 |
792 |
792 |
| Screen holes diameter(mm) |
40 |
40 |
40 |
| Motor power(kw) |
75-90 |
2x55~2x75 |
2x75~2x90 |
| Hydraulic power(kw) |
5.5 |
7.5 |
7.5 |
| Cutting chamber dimensions(mm) |
1362X1640 |
1593x1640 |
2055x1640 |
| Overall dimensions(LxWxH)(mm) |
2190x2930X2442 |
2190x4100x2442 |
2190X4900X2442 |
| Weight(kg) |
Approx 7300-7500 |
Approx 9455-9600 |
Approx 12000-12500 |
